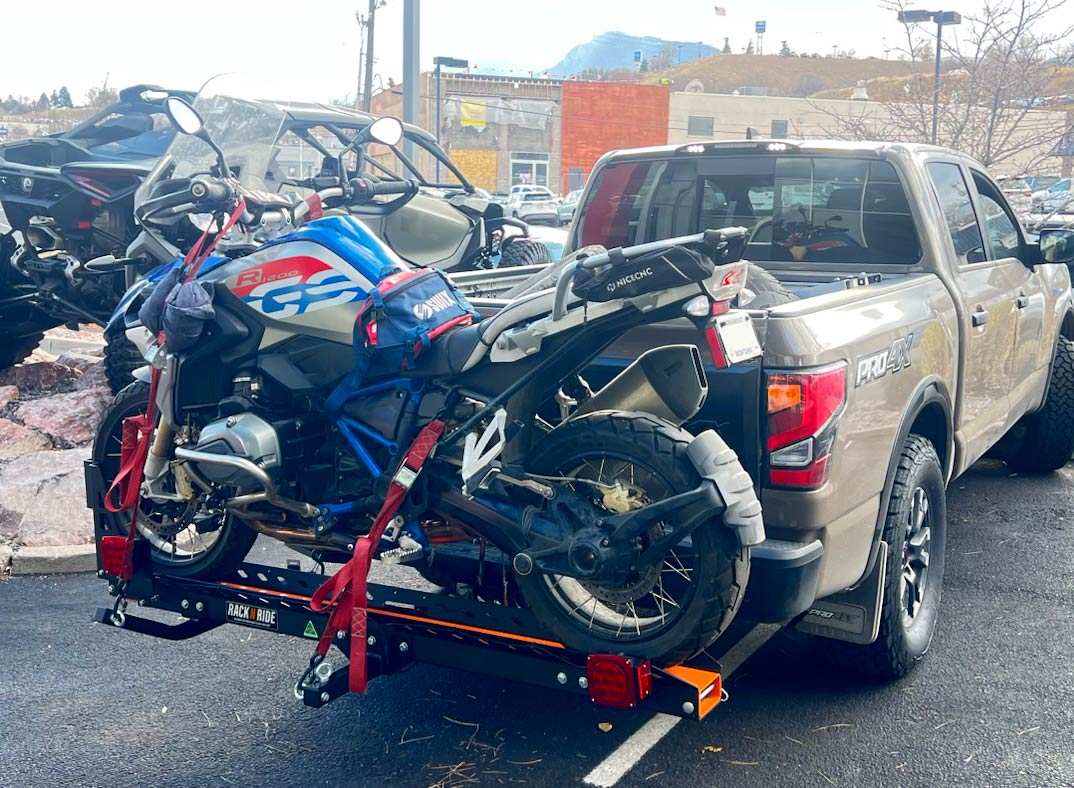

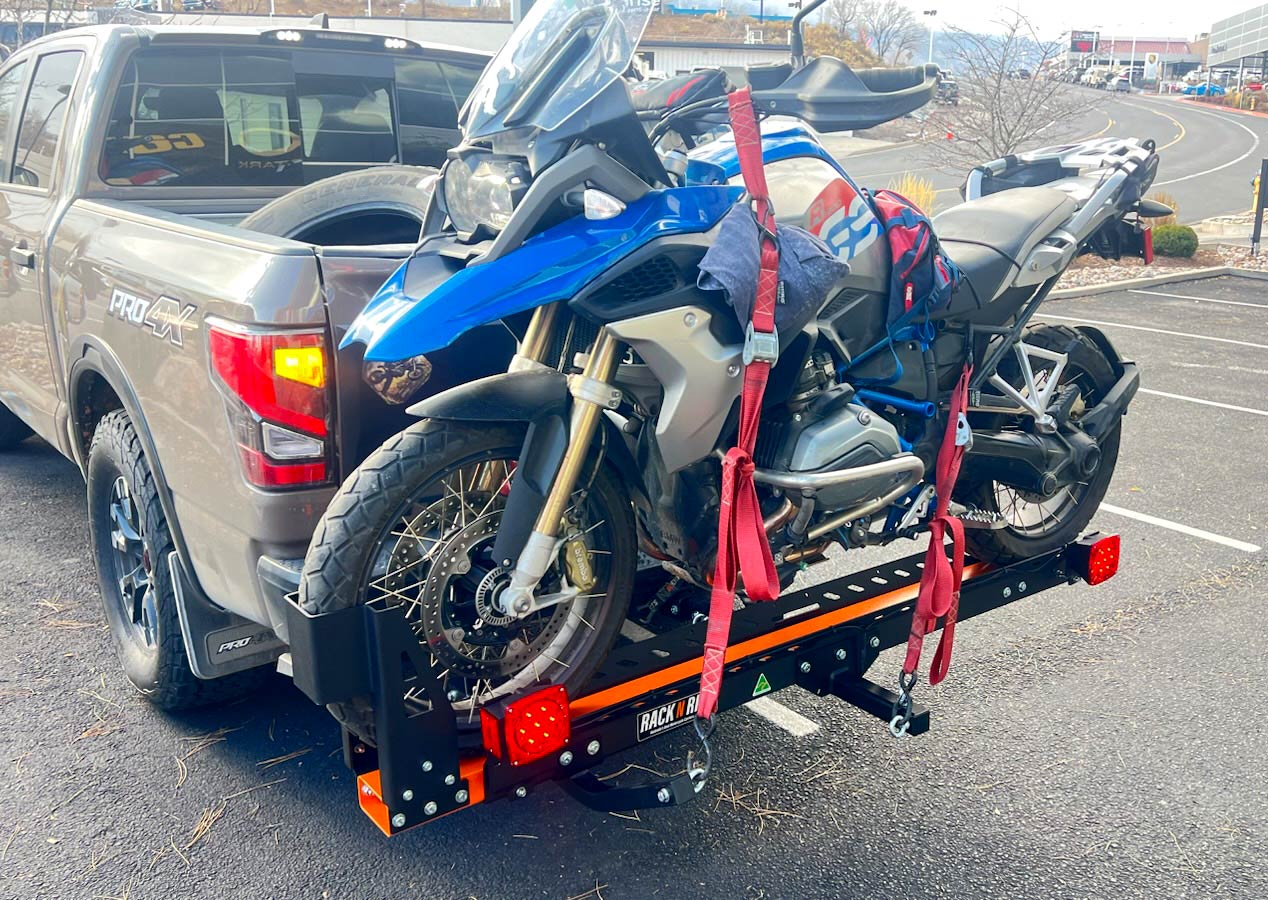

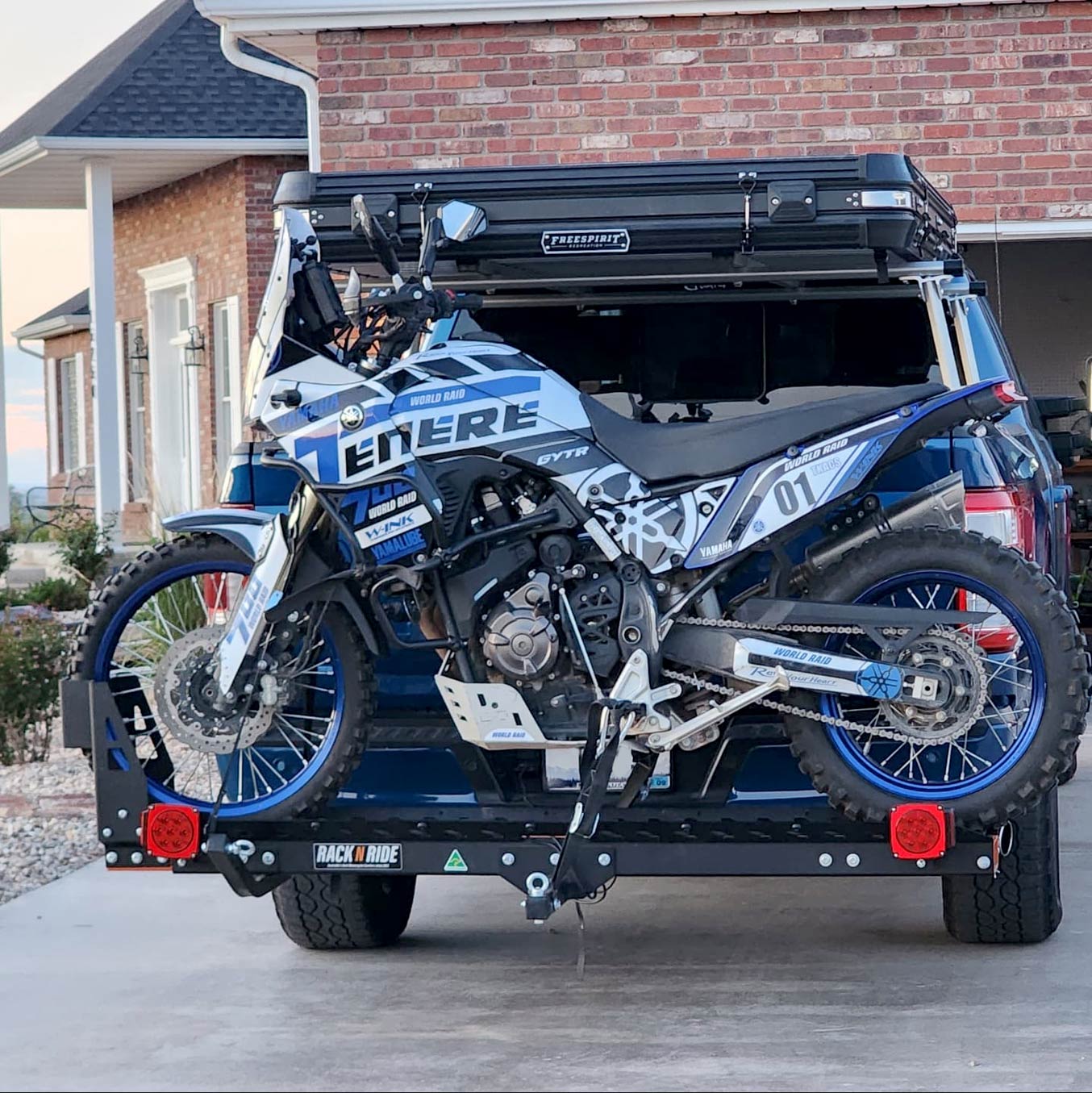

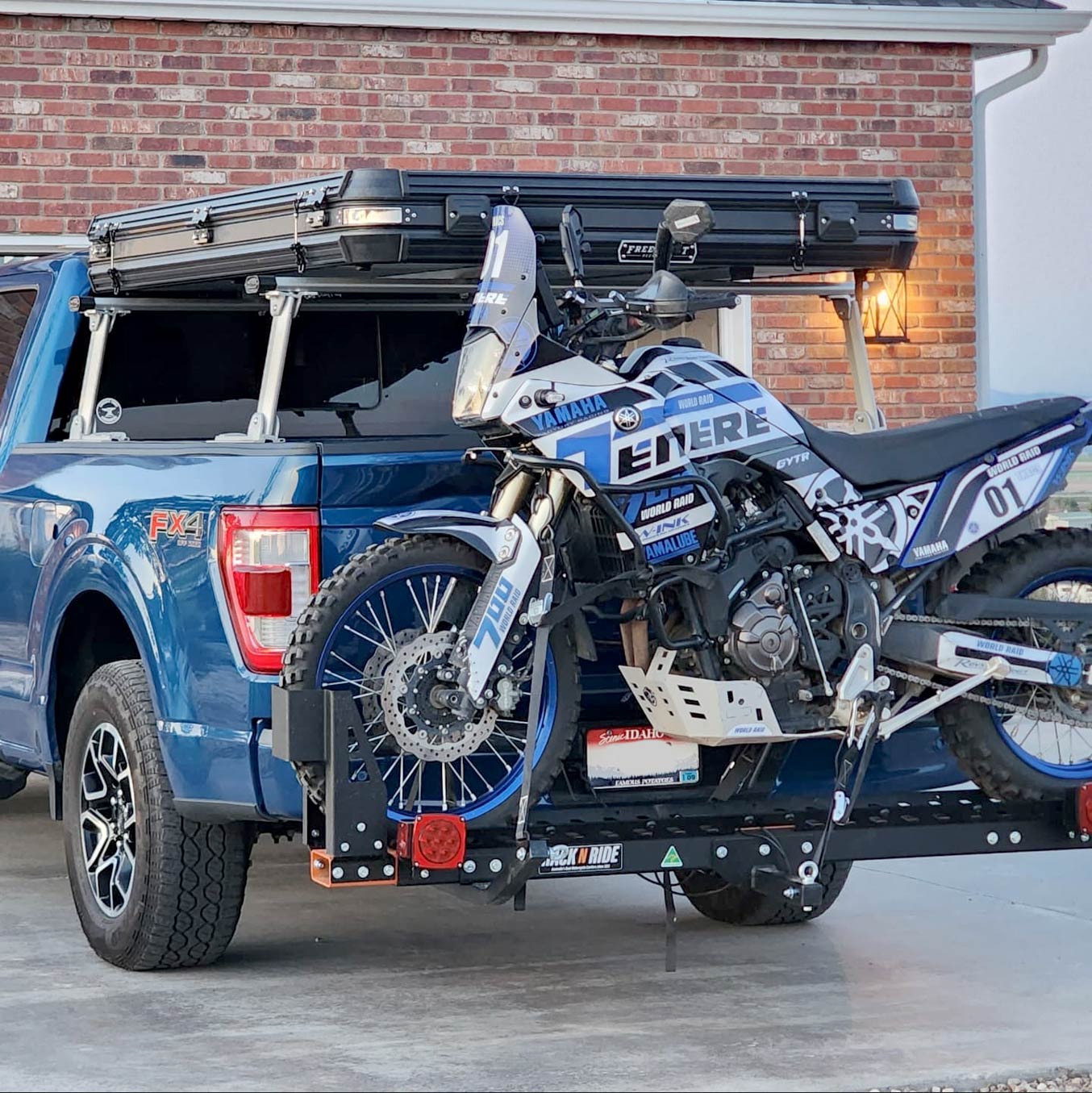

Standard length on the ADV Carrier is 21.5″ from center hitch pin hole to center bike channel.
MAIN BAR LENGTH:
95% of vehicles are standard length main bar.
Pick up trucks with a tub, style side and SUV’s with no spare tire on rear door are standard fitment.
Trucks with steel trays or service bodies and SUV’s or Jeeps with a spare tire on the rear door, 4×4’s with swing away spare tires, jerry can holders will need a longer main bar.
On the standard length main bar your bikes inside foot peg is 9″ from the center of the hitch pin hole.
SUV’s and Jeeps with a tire on the back door want 2″- 4″ between the foot peg and the spare tire.
Open Tray back Utes want 2″- 4″ between the foot peg and end of tray.
The drawings below are for the MX Carrier which is 500mm / 19.75″ from pin to center bike channel.
The ADV Carrier is 550mm / 21.5″ from pin to center bike channel
