Assembly, Installation, Loading, Securement & Safety Instructions

Follow these instructions carefully to ensure safe usage of your new Rack N Ride eTrike carrier.

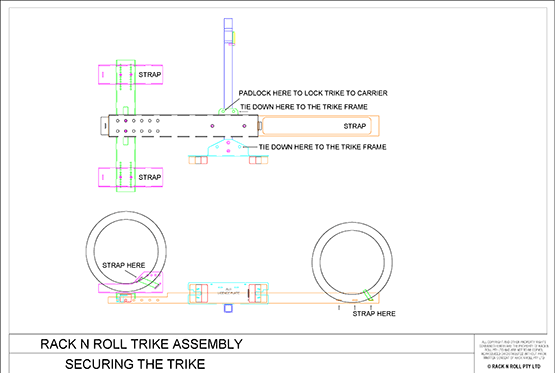

You must secure your Trike at a minimum of six points, using MX tie-downs or ratchet straps attached to the frame, handlebars, triple clamp, crash bars, rear tire or foot pegs. This is essential for safety and is easily achieved.

Securing your trike from the frame to the main bar into the tow bar receiver is the strongest option.
For a large eTrike bike we recommend strapping off the frame at 2 points each side.
The front tie down bar provides another set of anchor points to use additional back up straps.

Making your trike secure: On the inside, closest to vehicle, use the trailer safety chain shackle points, if you strap from here up to your trikes frame diagonally you are securing the trike to the vehicle, and limiting it’s movement.

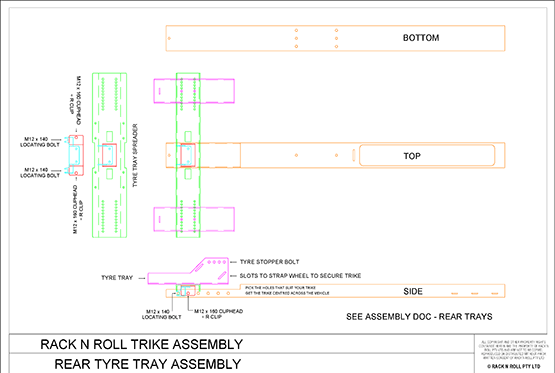

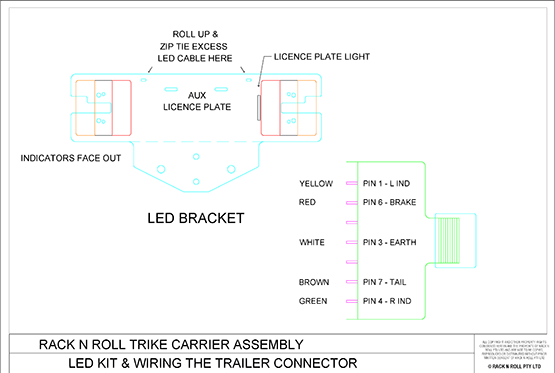

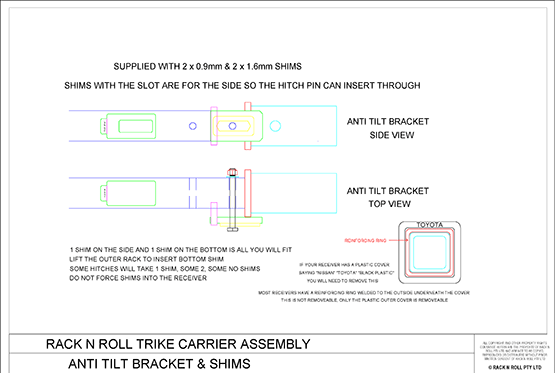

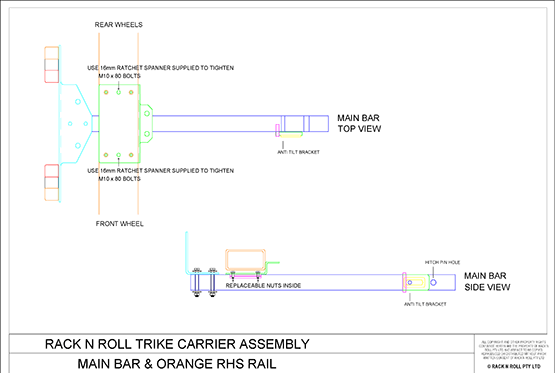

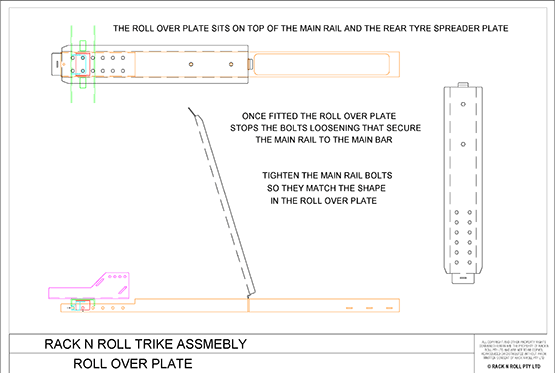

Assembly Instructions for the eTrike carrier

Assembly instructions for Double Trike & Bike carrier

eTrike Carrier PDFs

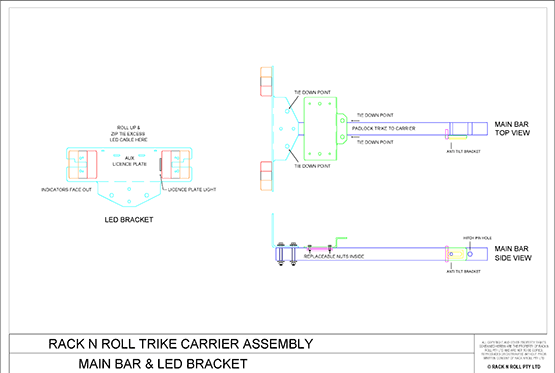

Main Bar and LED Bracket for eTrike carrier
