Assembly, Installation, Loading, Securement & Safety Instructions

Follow these instructions carefully to ensure safe usage of your Rack N Ride MX PLUS motorcycle carrier.

You must secure your motorcycle at a minimum of four points, using MX tie-downs or ratchet straps attached to the frame, handlebars, triple clamp, crash bars, rear tire or foot pegs. This is essential for safety and is easily achieved.

Securing your bike from the frame to the main bar into the tow bar receiver is the strongest option, you can also secure from the foot pegs with MX bikes.

DO NOT rely solely on strapping to the foot pegs.

The front tie down bar provides another set of anchor points to use for additional back up straps.

Assembly, Installation, Loading, Securement & Safety Instructions

Assembly Instructions for the MX+ carrier

Loading your motorcycle onto the MX+ carrier

MX+ Carrier PDFs

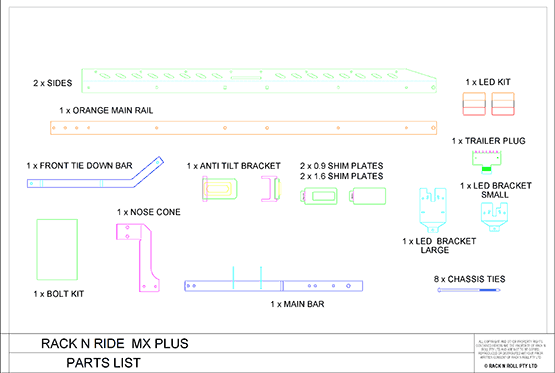

Parts list for MX+ carrier
Parts list for MX+ carrier

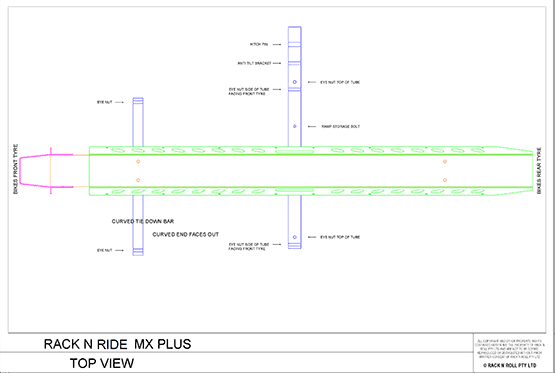

Top View of MX+ carrier
Top View of MX+ carrier

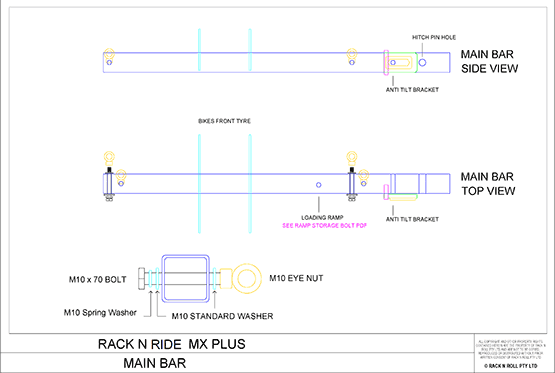

Main Bar Assembly instructions for MX+ carrier
Main Bar (MX+ & MX are the same)

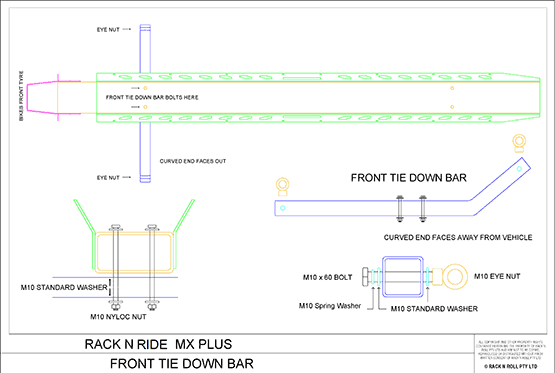

MX+ Front Tie Down Bar
MX+ Front Tie Down Bar

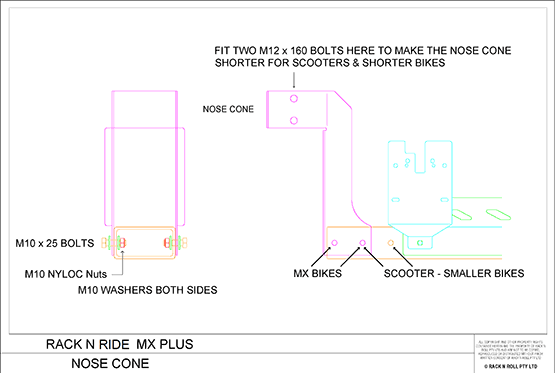

Nose cone assembly instructions for MX+ carrier
Nose cone assembly instructions
Adventure Carrier Instructions Trailer Plug Connector
Trailer Plug Connector wiring diagram

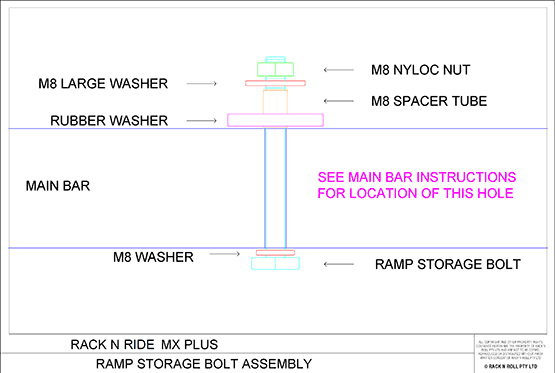

Loading Ramp Storage Bolt for MX+ carrier
Loading Ramp Storage Bolt

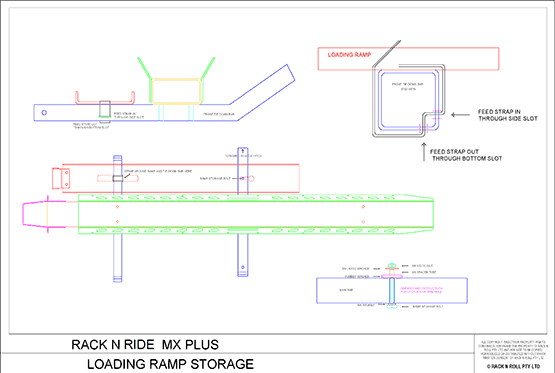

Loading Ramp assembly instructions for MX+ carrier
Loading Ramp assembly instructions

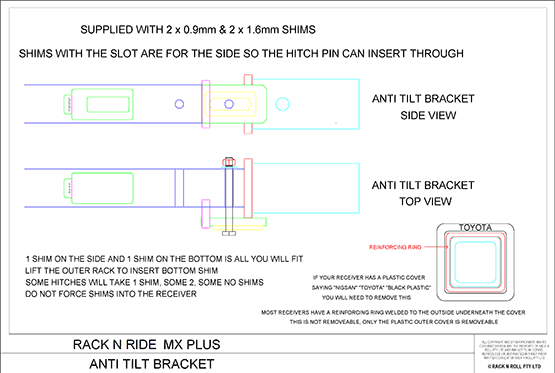

Anti-Tilt Bracket for MX+ carrier
Anti-Tilt Bracket (MX+ & MX are the same)
